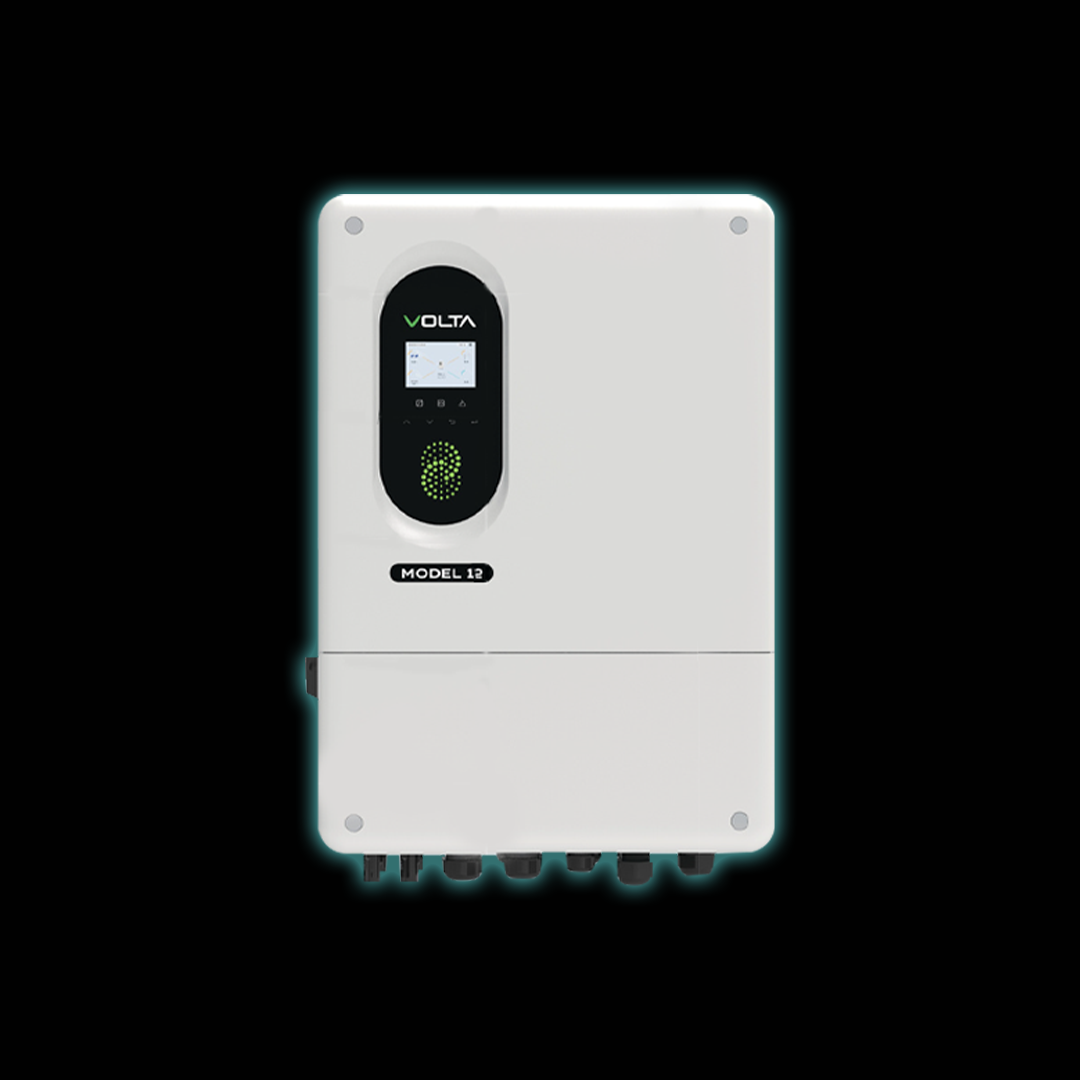

Volta 12kW Hybrid Inverter – Single Phase

Upgrade your solar energy system with the Volta Model 12, a powerful and intelligent single-phase hybrid inverter designed for maximum efficiency and reliability. Perfect for residential and small commercial applications, this inverter ensures seamless power management with advanced features for uninterrupted energy supply.

Key Features:

✅ High PV Input & AC Output – Supports 200% PV oversizing and delivers up to 110% AC output, maximizing solar utilization.

✅ Powerful EPS Backup – Provides 200% peak emergency power for up to 10 seconds, ensuring uninterrupted backup during outages.

✅ Ultra-Fast Switching – UPS-level switching time of less than 4ms, preventing downtime for critical loads.

✅ Smart Load Management – Advanced CT compatibility with load response in just 0.3s, optimizing power distribution.

✅ High Charging/Discharging Power – Supports a maximum 250A battery charge/discharge rate for efficient energy storage.

✅ Versatile Compatibility – Works with high-power solar panels, lithium & lead-acid batteries, and is generator-compatible for hybrid setups.

✅ Enhanced Protection & Efficiency – Features IP65-rated protection, integrated surge protection (SPD), optional AFCI, and built-in shadow tracking for improved performance.

✅ Economical & Intelligent Design – With smart cooling, low startup voltage, and high efficiency, the Model 12 ensures long-term savings and sustainability.

Technical Specifications:

Max PV Input Power: 18,400W

Battery Voltage Range: 40V – 60V

Max AC Output Power: 12,000VA

Peak Apparent Power: 24,000VA (for 10 sec)

Nominal AC Voltage: 220/230/240V, 50/60Hz

Operating Temperature: -25°C to +60°C

Communication Interfaces: WiFi, LAN, USB, RS485, CAN, Meter, CT

Protection Rating: IP65 (dust & water-resistant)

Warranty: 5 years

Whether you need a reliable solar inverter for self-consumption, energy storage, or grid backup, the Volta Model 12 is a top-tier choice for efficient and resilient power management.
